| الـ MOQ: | قطعة واحدة |
| العبوة القياسية: | 80*80*60سم 40كجم |
| فترة التسليم: | 5-8 يوم عمل |
| طريقة الدفع: | D/A، D/P، T/T، ويسترن يونيون، موني جرام، باي بال |
| القدرة على التوريد: | 5000 قطعة شهريا |
It is used for monitoring drone information such as SN code, model, location (longitude/latitude, azimuth, distance), speed, height, altitude, home spot,controller location(longitude/latitude, azimuth, distance) etc.
LDSKC01 works offline or online (optional). It is easy to carry, deploy, and use via touch screen,works against DJI Mavic, Air, Mini, FPV, Avata series,also Autel,parrot drones,etc.
|
Work mode
|
RF sensing
|
|
Azimuth error
|
≤1.5°(RMS)
|
|
Frequency
|
900MHz,1.2GHz,2.4GHz,5.2GHz,5.8GHz
|
|
Range
|
1-10km (varies due to environment and drone model)
|
|
Screen size
|
10.1 inches
|
|
Resolution
|
1080P,1920*1200 pixels
|
|
Power consumption
|
≤100W
|
|
Waterproof&Dust Proof
|
IP65
|
|
Operating temperature
|
-20~65ºC
|
|
Storage temperature
|
-40~70ºC
|
|
Location error
|
≤10m
|
|
External supply voltage
|
100 ~ 220V AC
|
|
Drone model that can be detected
|
DJI,AUTEL,FIMI,DAHUA, PowerVision,YUNEEC,UDIRC and other common brands of drones and some self-made FPVs and WiFi drones
|
|
Drone can be located
|
DJI Mavic,Air,Mini,FPV,Avata series,three devices together can detect and locate other drone brands.
|
|
Size
|
(520mm*415mm*224mm)±2mm,Case closed
|
|
Ready to use
|
≤120s
|
|
Weight
|
20kg,
|
|
Detection result
refresh time |
4~6s,Varies due to
environment and |
|
Drone swarm
detection |
≥5 drones
|
|
Altitude
|
0m~1000m
|
|
Working Time
|
4 hours,External power supply or larger capacity battery can be used to extend the working time
|

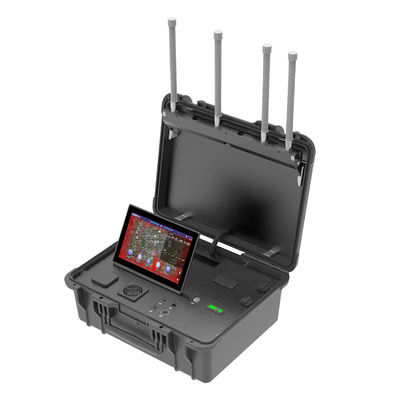

1. Antenna
2. Display screen
3. Battery compartment
4. Power switch
5. Battery level display
6. GNSS antenna
7. Fan
8. USB interface × two
9. Ethernet interface
10. External power interface
Company Profile
Shenzhen ladasky technology , specializing in the field of advanced technology. Our company is located in the vibrant city of Shenzhen, known as a hub of innovation and technology in China.
Our main products include RF module and anti FPV, which are designed with cutting-edge technology and strict quality control to meet the diverse needs of our customers. The RF module offers high-performance and stable signal transmission, enabling seamless communication in various applications. The anti FPV solution provides effective protection against unauthorized interference and ensures the security and privacy of video transmission.
We pride ourselves on our strong R&D team, composed of experts and engineers with rich experience and professional knowledge in the field. They are constantly exploring and innovating to bring forth new and improved products that stay ahead of the market trends.
Our manufacturing facilities are equipped with state-of-the-art machinery and adhere to international quality standards. This ensures that every product leaving our factory is of the highest quality and reliability.
At Shenzhen ladasky technology, we are committed to providing excellent customer service. Our dedicated team is always ready to assist customers, answer their inquiries, and provide technical support to ensure their satisfaction.
Looking forward, we aim to continue our growth and expansion in the global market. We will keep investing in research and development to introduce more advanced and competitive products, and strive to build long-term partnerships with customers based on mutual trust and cooperation.
|
Quantity (sets)
|
1-10
|
11-50
|
50
|
|
Lead time (days)
|
5days
|
15
|
To be negociation
|
Q1: Are you a factory or trading company?
We are a factory, which locates in Shenzhen City, China. Welcome to visit us:)
|
|
