| الـ MOQ: | 1 |
| السعر: | $3850 |
| فترة التسليم: | 1 يوم عمل |
| طريقة الدفع: | D/A ، D/P ، T/T ، Western Union ، Moneygram ، PayPal |
| القدرة على التوريد: | 5000 قطعة شهريا |
| Attribute | Value |
|---|---|
| Detection Frequency Band | 100MHz～6GHz |
| Detection Radius | 1.5~2km (urban Environment) |
| Response Time | 3~ 5s |
| Time Of Endurance | 3~ 4h |
| Highlight | 6000MHz Anti Drone Detection Device, Wearable anti drone detection device |

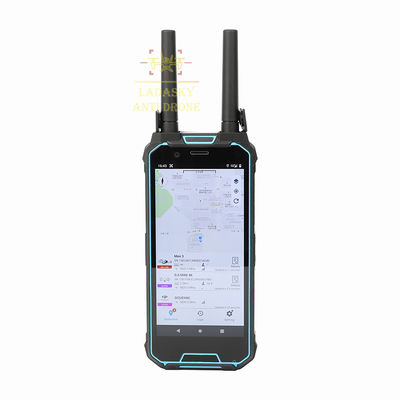

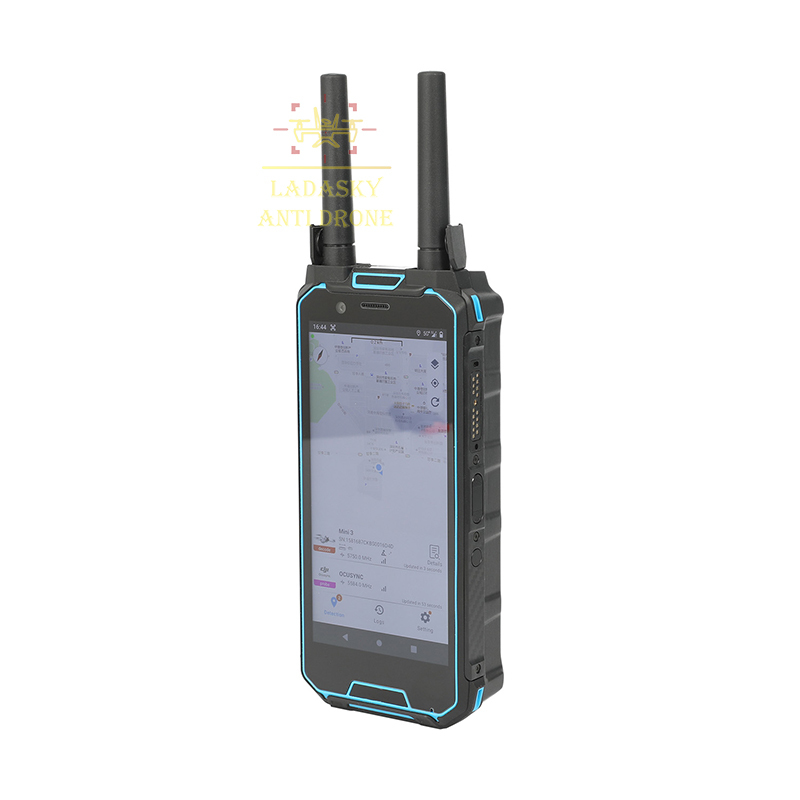

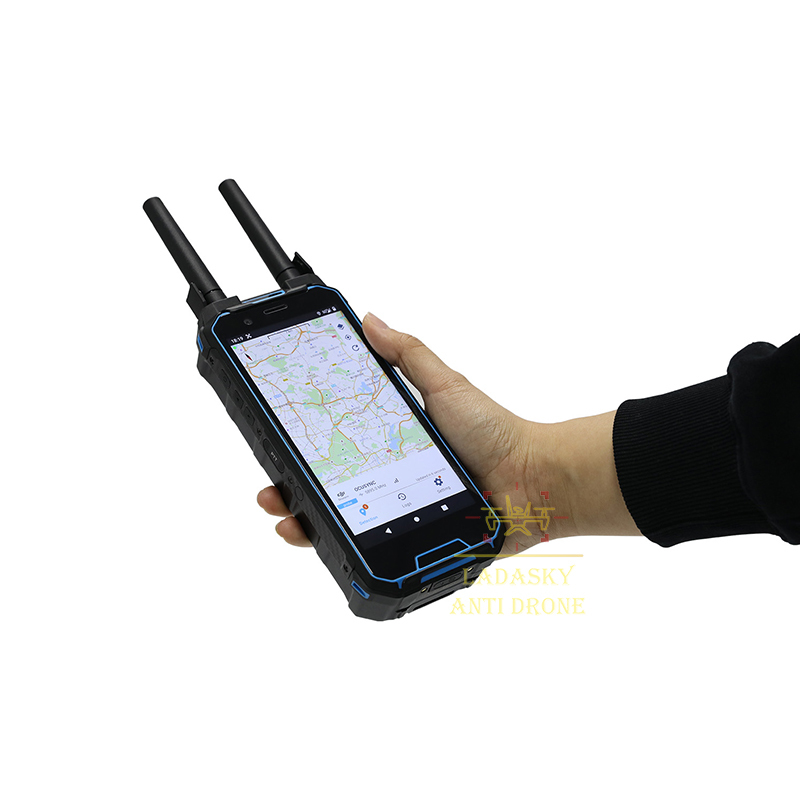

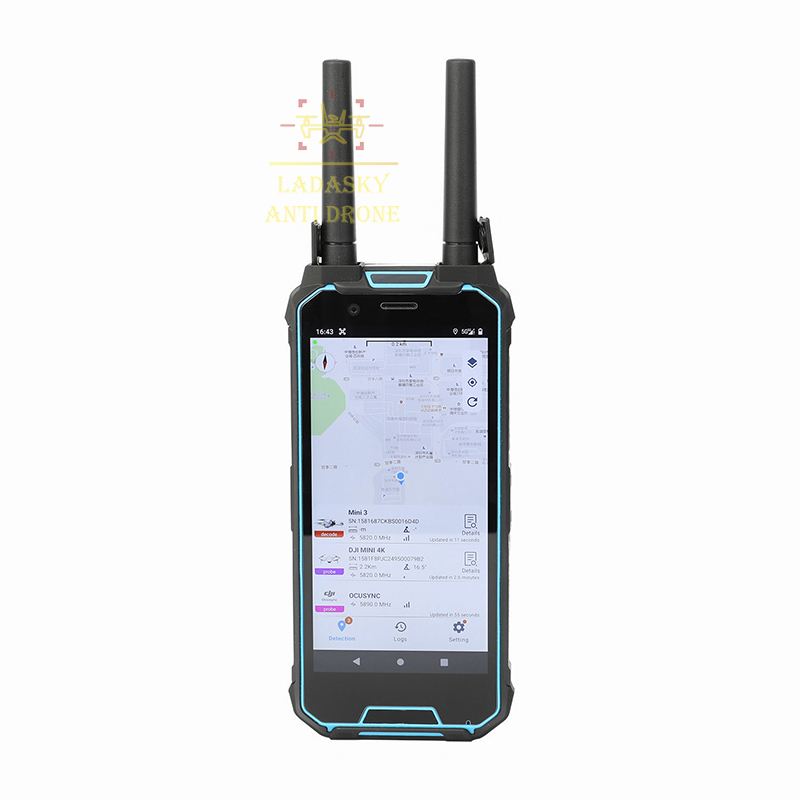

The LDSKL02 Portable UAV Detection and Positioning Device is an advanced, single-operator handheld solution that integrates spectrum detection, protocol analysis, Remote ID identification, and trajectory tracking in one compact system. It provides real-time detection, early warning, and precise positioning of both UAVs and their pilots, making it ideal for security, patrol, and critical infrastructure protection.
With a detection frequency range of 100MHz -6GHz, the TTSKL02 can identify common drone models such as DJI, Dow Tong, FPV racing drones, WiFi-based UAVs, and more. It supports passive detection to avoid electromagnetic interference, offers 1.5 -2km detection in urban areas (up to 3km in open areas), and delivers accurate UAV/pilot navigation via an integrated map interface.
Designed for field portability, it weighs only 650g, features a 6-inch touch screen, supports 3 -4 hours of operation on a single charge, and provides visual flight data analysis for post-event investigation. Optional network intercom enables device-to-device communication when connected to a wireless network.
| Category | Parameter | Specification | Remarks |
|---|---|---|---|
| Performance | Detection Frequency Band | 100MHz-6GHz | - |
| Detection Radius | 1.5-2km (urban) / 2-3km (open) | - | |
| Response Time | 3-5s | - | |
| Positioning Range | 1-2km (urban) / 2-3km (open) | - | |
| Simultaneous Detections | ≥10 UAVs | - | |
| Endurance Time | 3-4h | - | |
| Mechanical | Host Dimensions | 185×80×33mm ±5mm | - |
| Mechanical | Weight | 650±10g | Without antenna |
| Electrical | Battery Capacity | 8000mAh | Built-in lithium battery |
| Electrical | Operating Time | 4-6h | Screen brightness 20%, 25℃ |
| Electrical | Charging Time | ~3h | With original charger |
| Environmental | Operating Temp | -25℃ to +40℃ | - |
| Environmental | Storage Temp | -35℃ to +40℃ | - |
| Display | Screen Size | 6 inches | - |
| Display | Resolution | 1080×2160 pixels | - |
| Storage | Internal Storage | 8GB | - |
| Storage | Memory | 256GB | - |
| System | OS | Android 12 | - |
| System | Network Support | Online & offline modes | - |
| Quantity (PCS) | <100pcs | <500 | 500-1000 | >1000 |
|---|---|---|---|---|
| Lead time (Days) | 3 | 3-5 | 7-12 | To be negotiated |
| Item | Logo | Frequency | Power | Packing |
|---|---|---|---|---|
| MOQ (PCS) | 1 | 1 | 1 | 1 |
Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. We focus on RF sensing, signal analysis, and active interference solutions. Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems.
Ladasky is committed to delivering precise, efficient, and intelligent low-altitude protection solutions. Our systems have been widely applied in government agencies, public security, and critical infrastructure protection. Driven by innovation, we are dedicated to building industry-leading UAV control and management technology platforms.
| Selling Units: | Single item |
|---|---|
| Single package size: | 20X10X5 cm |
| Single gross weight: | 0.2kg |
| Package Type: | Each piece is individually packed into a bag and then packed into a carton. |
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.
