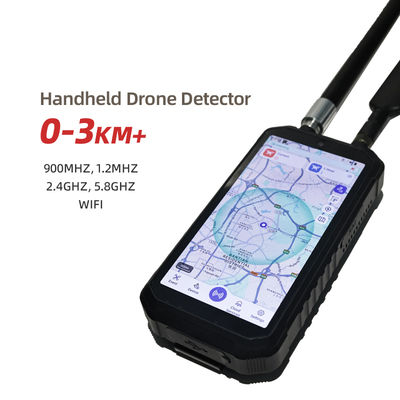

Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments

  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
  • Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments
مكان المنشأ قوانغدونغ ، الصين
اسم العلامة التجارية LDSK
رقم الموديل LDSKL03
الحد الأدنى لكمية 1
الأسعار $4100
وقت التسليم 1 أيام العمل
شروط الدفع D/A ، D/P ، T/T ، Western Union ، Moneygram ، PayPal
القدرة على العرض 5000pcs في الشهر

اتصل بي للحصول على عينات مجانية وكوبونات

واتس اب:0086 18588475571

(وي تشات): 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.

x
تفاصيل المنتج
نطاق تردد الكشف 300 ميجا هرتز ~ 6 جيجا هرتز نصف قطر الكشف 3 كم (البيئة الحضرية)
وقت الاستجابة 5s وقت التحمل 3 ~ 4H
تسليط الضوء جهاز الكشف عن الطائرات بدون طيار 6000 ميجا هرتز ، جهاز الكشف عن الطائرات بدون طيار يمكن ارتداؤه
إبراز

CRPC+ Technology Handheld Drone Detector,RID Monitoring UAV Detector,Passive Detection Portable Drone Detection Device

,

RID Monitoring UAV Detector

,

Passive Detection Portable Drone Detection Device
يمكنك تحديد المنتجات التي تحتاجها والتواصل معنا في لوحة الرسائل.
اترك رسالة
منتوج وصف
3KM Detection Handheld Drone Detection & Positioning System 300MHz–6GHz Full-Band Coverage
Product Description

The Handheld Drone Detection and Positioning Equipment (LDSKL03) uses Cognitive Radio Protocol Cracking+ message-level decoding (CRPC+) technology and RID monitoring and identification technologies to detect, accurately identify, locate, and track low-altitude drones. The system is designed with high integration, compact size, and lightweight, primarily used for portable low-altitude security defense.



Cognitive Radio Protocol Cracking Technology (CRPC 2.0) is the fourth generation of drone defense technology. This technology uses an antenna array to monitor the radio environment within the defense area, continuously collecting radio signals 24 hours a day. The collected signals are transmitted to the signal processing unit, where drone signals are precisely demodulated and cracked. The analyzed drone signals are then sent to the data server via the network, where the data server manages the received drone signals uniformly

Applications include:
  • Event security and public safety
  • Border and perimeter monitoring
  • Airport and restricted area protection
  • Industrial facility security patrols
Product Specifications

Working Principle

Passive detection, does not emit any electromagnetic signals

Detection Bands

900MHz, 1.2MHz, 2.4GHz, 5.8GHz, WiFi；

Sensitivity

≤-100dBm

Detection Distance

0~3km+ (Different exist due to different environments and drone type)

Response Time

≤5s

Detection Quantity

≥10 Drones (Simultaneous)

Number of Drone Trajectories

≥10 Drones (Simultaneous)

Position Accuracy

≤3m (Available for the drones can be decoded)

Drone Library (Geo-Locaation)

DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands

Dynamic Detection Movement Speed

≥60km/h  (Available for the drones can be decoded)

Screen Size

6.0 Inch

Battery Capacity

12000mAh

Endurance

3～4h

External Interface

Type-C, SMA antenna connector (external screw and internal hole)*2, 3.5mm audio output connector*1, SIM card*1

Charging Power

DC9V, 2A

Charging Time

≤3h(0%-100%)

Power Consumption

≤15W

Size

177mm * 89mm * 29.5mm(±2mm)

Weight

≤580g(±0.05kg,without antenna)

≤46g per antenna

Operation Temperature

-20℃ to +50℃

Storage Environment

15～25℃

RH25～65%

IP Level

IP54
Product Images

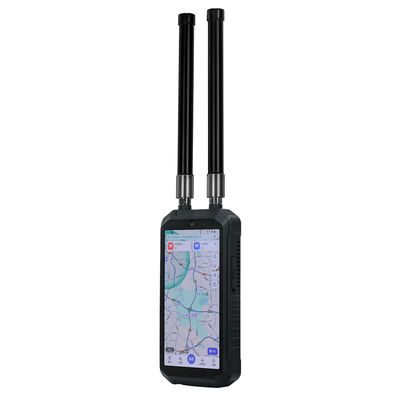

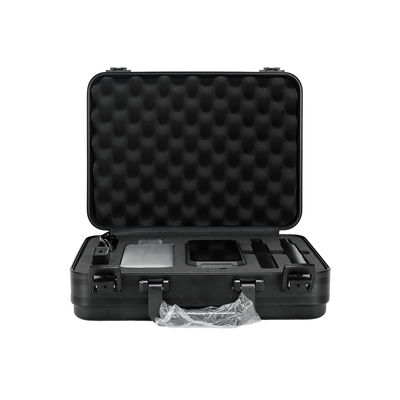

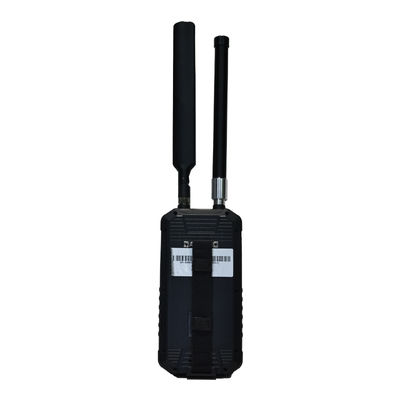

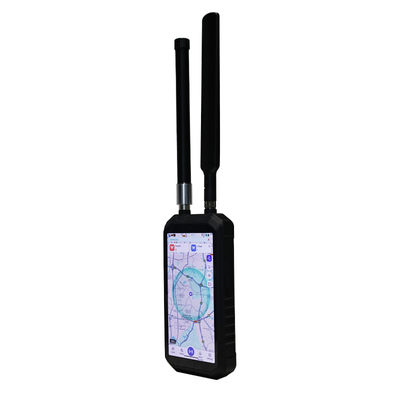

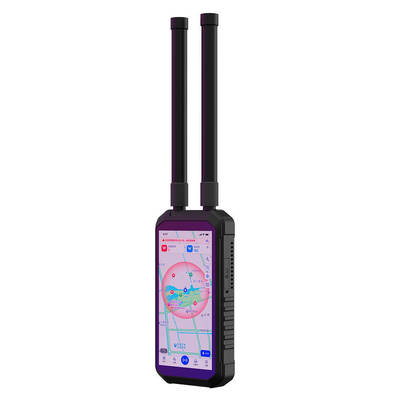

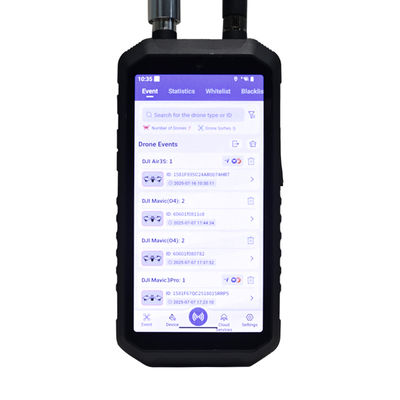

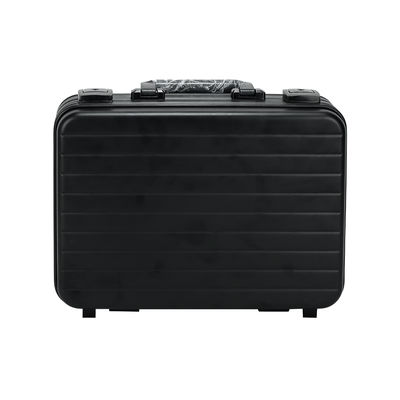

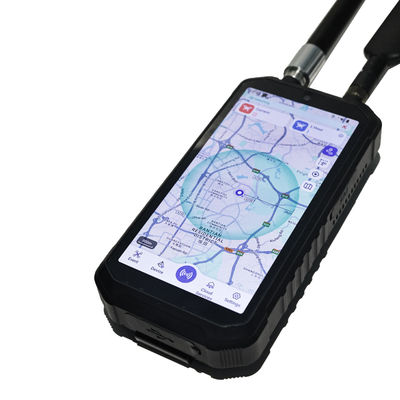

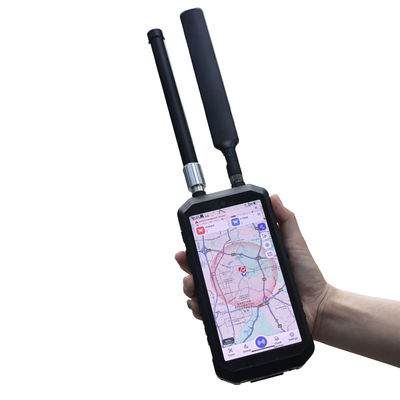

Handheld Drone Detector with CRPC+ Technology and RID Monitoring for Passive Detection in Urban Environments 0
