70MHz–6GHz Fixed 360° Anti Drone System with Integrated Detection and Jamming for Comprehensive Defense
| مكان المنشأ | الصين |
|---|---|
| اسم العلامة التجارية | LDSK |
| رقم الموديل | LDSK-TDZ-2C |
| الحد الأدنى لكمية | 1 قطعة |
| الأسعار | $54300 |
| وقت التسليم | 5-8 أيام العمل |
| شروط الدفع | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام |
| القدرة على العرض | 5000 قطع شهريا |
اتصل بي للحصول على عينات مجانية وكوبونات
واتس اب:0086 18588475571
(وي تشات): 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| إبراز | 70MHz–6GHz Anti Drone System,360° Detection Drone Detection and Jamming System,Integrated Detection and Jamming Fixed Drone Defense System,360° Detection Drone Detection and Jamming System,Integrated Detection and Jamming Fixed Drone Defense System |
||
|---|---|---|---|
منتوج وصف
70MHz–6GHz Fixed 360° Anti-Drone System
Detection, Jamming & Spoofing Integrated Defense Solution
The LDSK-TDZ-2C Fixed Drone Detection and Defense System integrates a drone detection subsystem, directional RF jamming subsystem, and omnidirectional RF jamming subsystem into one comprehensive solution. It is capable of detecting, identifying, and neutralizing unauthorized drones in real time.
By effectively disrupting drone control and navigation links, the system can force drones to hover, land, or return to their take-off point, providing reliable protection of low-altitude airspace and preventing unauthorized intrusion into restricted zones.
Designed for high-performance security applications, the LDSK-TDZ-2C offers long-range detection and defense capabilities and supports fully automated operation, enabling continuous drone monitoring and countermeasures without human intervention.
Technical Parameters
| Parameter | Specification |
|---|---|
| Detection Frequency Bands | 70MHz-6GHz full frequency band scanning, detection and display |
| Key Detection Frequency Bands | 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz |
| FPV Analog Video Transmission Signal Detection | 500MHz~6GHz scan and display |
| FPV Analog Video Transmission Signal Detection Distance | ≥1.5km (support viewing real-time analog video) |
| Detection Distance | ≥10km (depends on working conditions) |
| Detection Range | Horizontal: 360°; Vertical: -90° to 90° |
| Detection Response Time | ≤10s from power-on to drone detection and reporting |
| Direction Finding Accuracy | ≤±3° (RMS, under site conditions with no obvious obstructions or electromagnetic interference) |
| Detection Display | Distance, altitude, speed, position (longitude/latitude accurate to 1m), drone model, SN code, take-off point, return point, real-time trajectory |
| Jamming Distance | ≥3km (depends on working conditions) |
| Interference Azimuth Coverage | 360° horizontal |
| Jamming Frequency Bands (Omnidirectional) | 420MHz-480MHz (50W), 650MHz-730MHz (50W), 740MHz-840MHz (50W), 860MHz-930MHz (50W), 1080MHz-1200MHz (50W), 1200MHz-1340MHz (50W), 1340MHz-1500MHz (50W), 1560MHz-1620MHz (50W), 4880MHz-5080MHz (50W), 5100MHz-5300MHz (50W), 5870MHz-6060MHz (50W), 5720MHz-5860MHz (100W), 2385MHz-2490MHz (100W) |
| Jamming Frequency Bands (Directional) | 850MHz-950MHz (50W), 2385MHz-2490MHz (50W), 5720MHz-5860MHz (50W), 5100MHz-5300MHz (30W) |
| Jamming Response Time | ≤7s |
| Omnidirectional Jamming Device Weight | ≤31kg each (2 devices) |
| Omnidirectional Jamming Device Size | 520mm * 465mm * 275mm |
| Directional Jamming Device Weight | ≤5kg each (4 devices) |
| Directional Jamming Device Size | 320mm * 320mm * 110mm |
| Detection Device Weight | ≤15kg |
| Detection Device Size | Diameter 400mm * Height 370mm |
| Total Device Weight | ≤150kg |
| Total Device Size | Diameter 1000mm * Height 2400mm |
| Working Temperature | -40℃ to 60℃ |
Cloud Platform Features
- Unattended and manual control functions with fully automated tracking interference
- Blacklist and whitelist management
- High-definition GIS system with environment and deployment information
- Log playback and statistical records including drone intrusion logs and reports
- GPS positioning with automatic north calibration
- Drone signal extraction and addition to feature library
- Device status monitoring (offline, standby, power-off, abnormal)

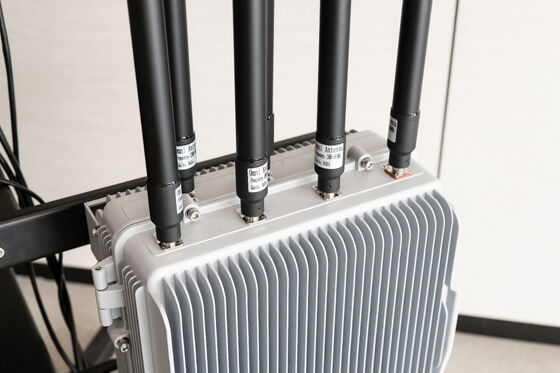

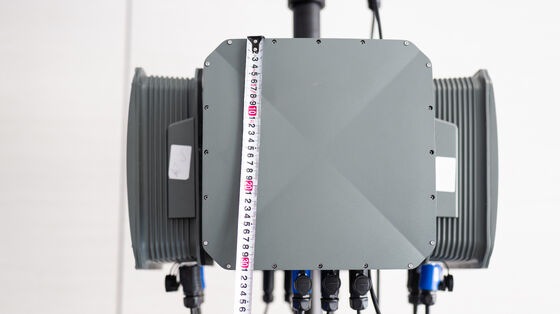

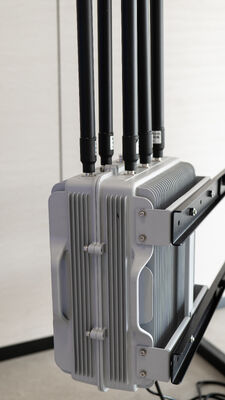

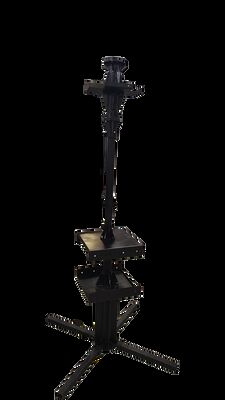

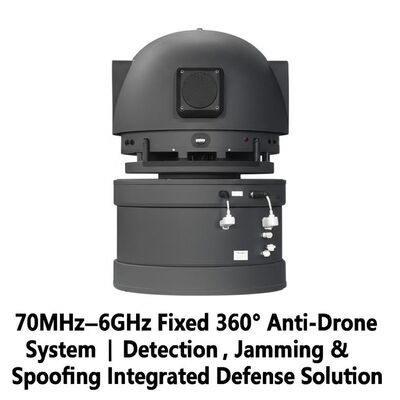

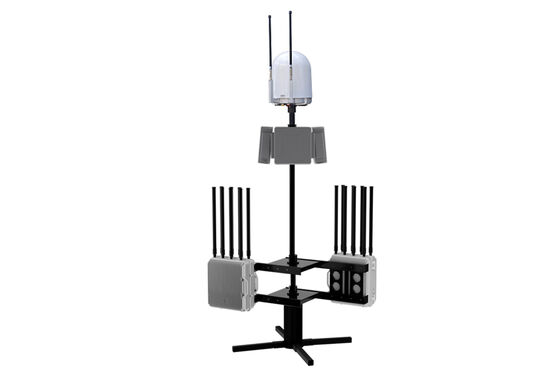

System Images
